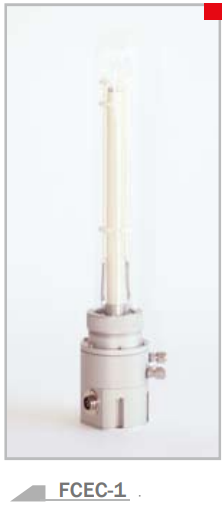

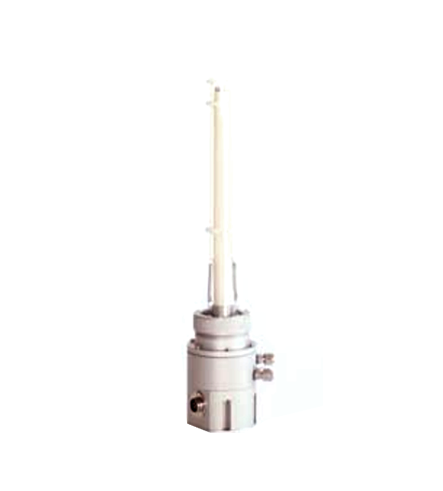

FCEC-1
FC/EC Button Cell Test Chamber
Temperature range
RT up to 1100℃
Atmosphere
oxidizing, reducing, 0~90% water vapor (option)
Dimension
Height 474 mm, Outer tube 60mmФ
Sample
Disc 19~22 mmФ size, Less than 15 mmФ electrode
Sample fixation
Spring loading
Electrode contact
Spring loading
Lead wire
2 pairs of Pt wire (Inner V, I / outer V, I), 0.5 mmФ
FCEC-1
Application
Fuel cell / Electrolytic cell test
Impedance spectroscopy
I-V characteristic evaluation
Gas permeation measurement
Concentration cell OCV measurement
Feature
Fuel cell / Electrolytic cell test
Easy sample fixation
Adjustable spring tension
No need of wiring
Prevention of water condensation(option)
Available at highly wet atmosphere (< 90% water vapor)
Specification
| Temperature range | RT up to 1100 ℃ |
| Atmosphere | oxidizing, reducing, 0~90% water vapor (option) |
| Dimension | Height 474 mm, Outer tube 60mmФ |
| Sample | Disc 19~22 mmФ size, Less than 15 mmФ electrode |
| Gas tube connection | ¼” LOK type |
| Sample fixation | Spring loading |
| Electrode contact | Spring loading |
| Lead wire | 2 pairs of Pt wire (Inner V, I / outer V, I), 0.5 mmФ |
| Thermocouple | R-type, 0.3 mmФ |

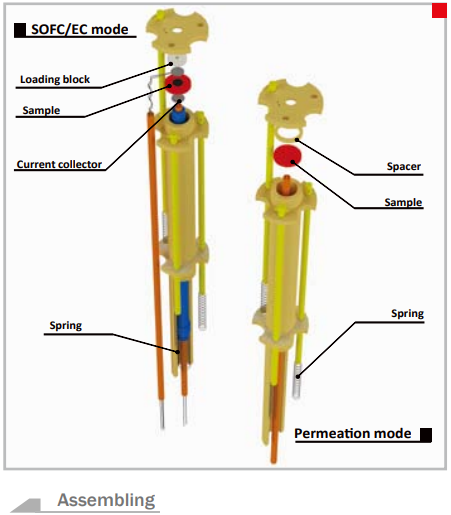

| Loading block | Porous alumina with gas hole |
| Chamber dock | Fixing device for FCEC-1 |

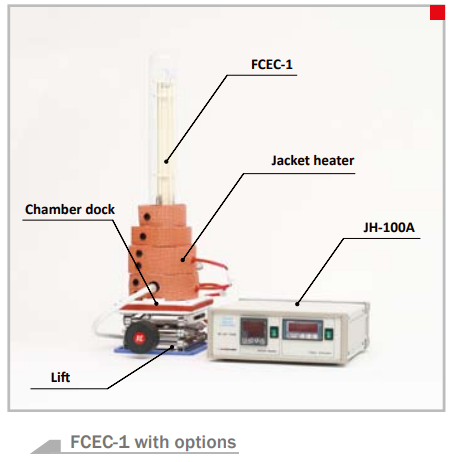

| Jacket heater | Up to 150℃ Easy to wear Chamber dock is necessary |
| Lift | 70 up to 250 mm |
| JH-100A | Control unit for the jacket heater Monitoring sample temperature |
